Plug & play
installation
The CNC AutoDoor comes complete with smart installation software, mounting brackets, cables and a clear installation manual. This allows installation within a few hours.
Solutions
Double door opener

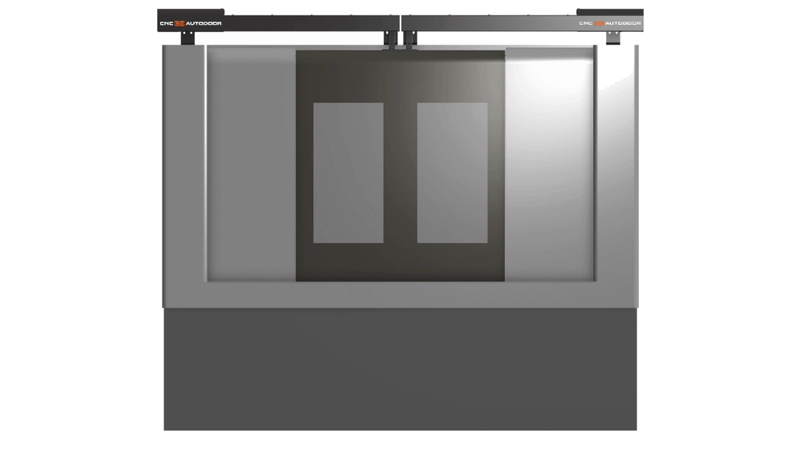

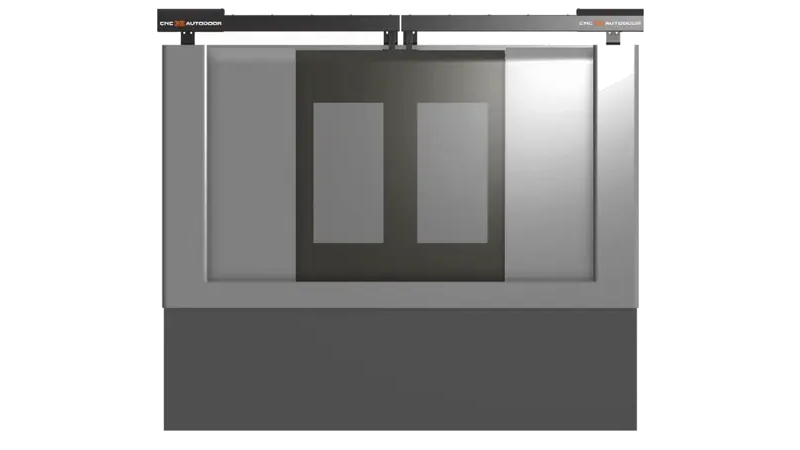

This model consists of two door openers with two controllers, operating two machine doors. The doors can open simultaneously or independently and can have different travel lengths.
- Industrial self-learning controller
- Up to 4000 mm travel and 700 kg door weight
- Servo-driven, no compressed air
Always in
stock
Ready for fast shipment from Europe and the USA.
Global
Support
Worldwide support from CNC AutoDoor, with local installation and service through our partners.
THE MODEL

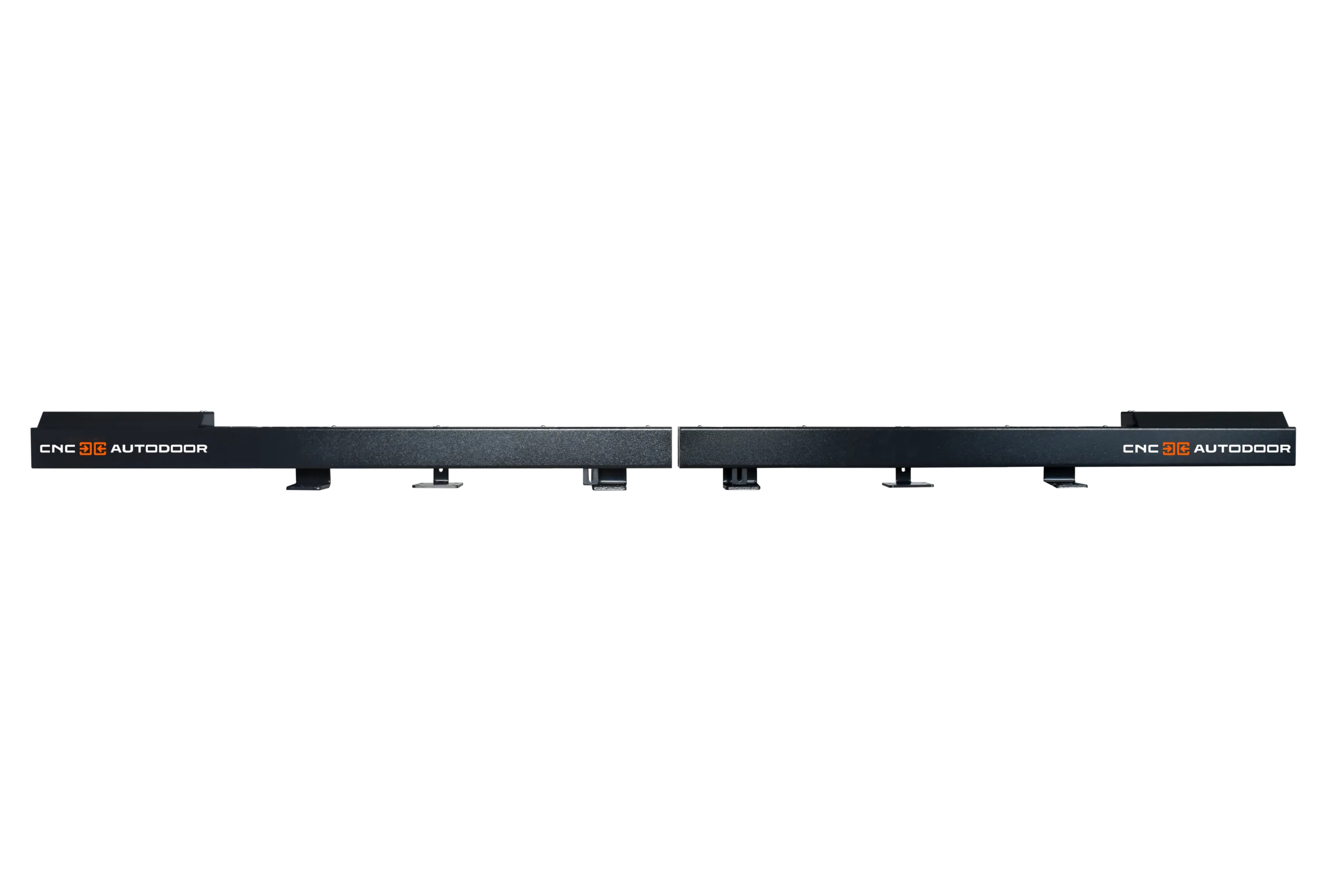

Double door opener at a glance
Models
Double door opener
Model
Travel
L x W x H
114 CNC AutoDoor 2x700 - double door 180 kg
2x 200 - 700 mm
2x 1085 × 115 × 130 mm
103 CNC AutoDoor 2x1000 - double door 180 kg
2x 300 - 1000 mm
2x 1385 × 115 × 130 mm
107 CNC AutoDoor 2x1000 - double door 400 kg
2x 300 - 1000 mm
2x 1385 × 115 × 130 mm
104 CNC AutoDoor 2x1500 - double door 180 kg
2x 300 - 1500 mm
2x 1885 × 115 × 130 mm
108 CNC AutoDoor 2x1500 - double door 400 kg
2x 300 - 1500 mm
2x 1885 × 115 × 130 mm
110 CNC AutoDoor 2x2000 - double door 400 kg
2x 300 - 2000 mm
2x 2385 × 115 × 130 mm
112 CNC AutoDoor 2x3000 - double door 400 kg
2x 300 - 3000 mm
2x 3390 × 115 × 130 mm
116 CNC AutoDoor 2x4000 - double door 700 kg
2x 300 - 4000 mm
2x 4470 × 195 × 130 mm
Applications
Get more from your machine
Robot loading
The CNC AutoDoor comes with a control box requiring only two signals to open and close the machine door. This makes it a universal plug & play system, compatible with any CNC machine and all robot brands.
Cobot loading
The CNC AutoDoor integrates seamlessly with cobots, including dedicated integration options such as URCap for Universal Robots.
Productivity
Optionally, the door opens automatically when the machine cycle is finished, giving operators a clear visual signal and reducing waiting time. Customers report productivity increases of 10–15%.
Ergonomics
Frequent manual opening of heavy machine doors puts unnecessary strain on operators. CNC AutoDoor automates this repetitive task, improving ergonomics and reducing physical strain.
Double door opener

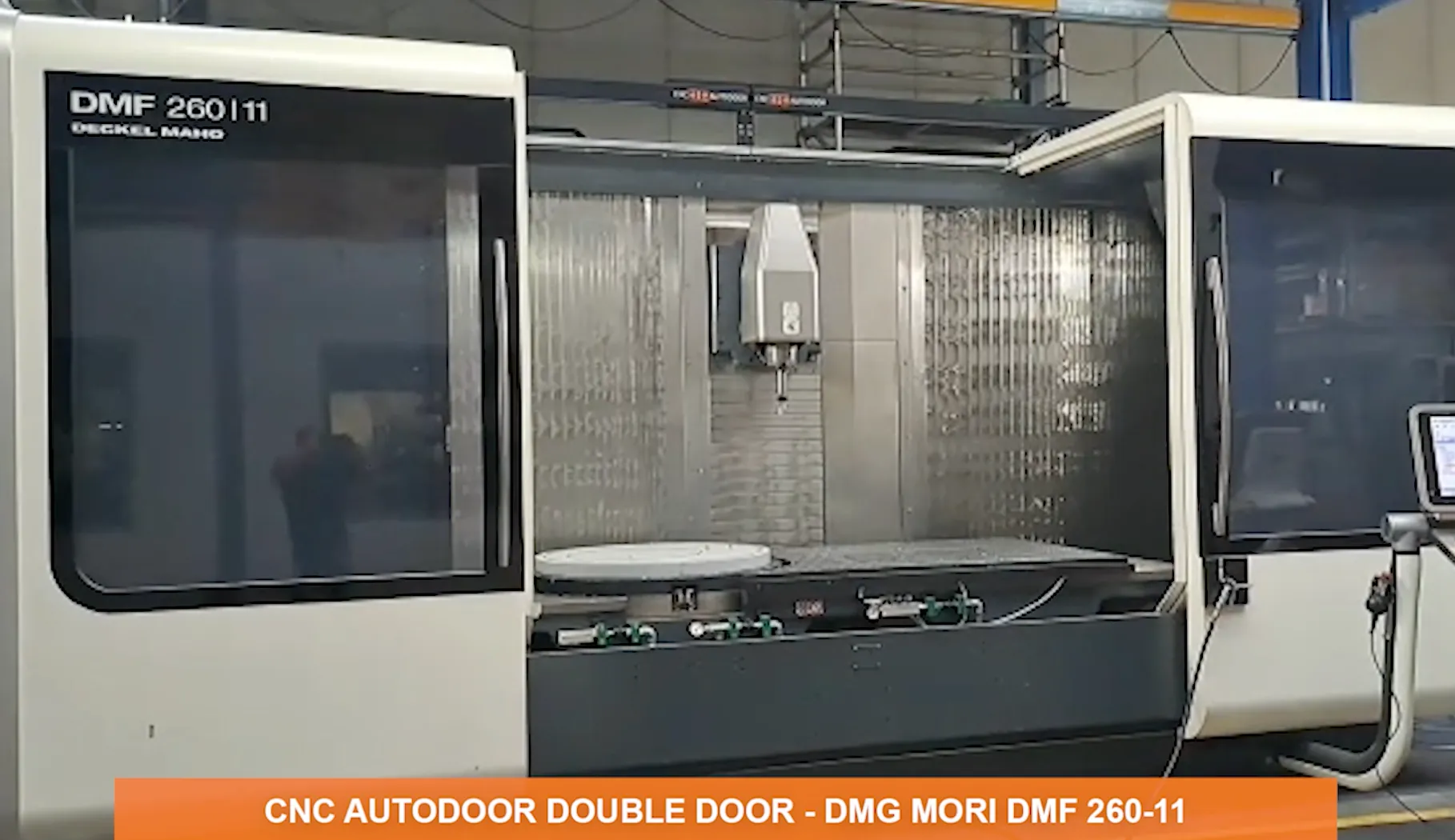

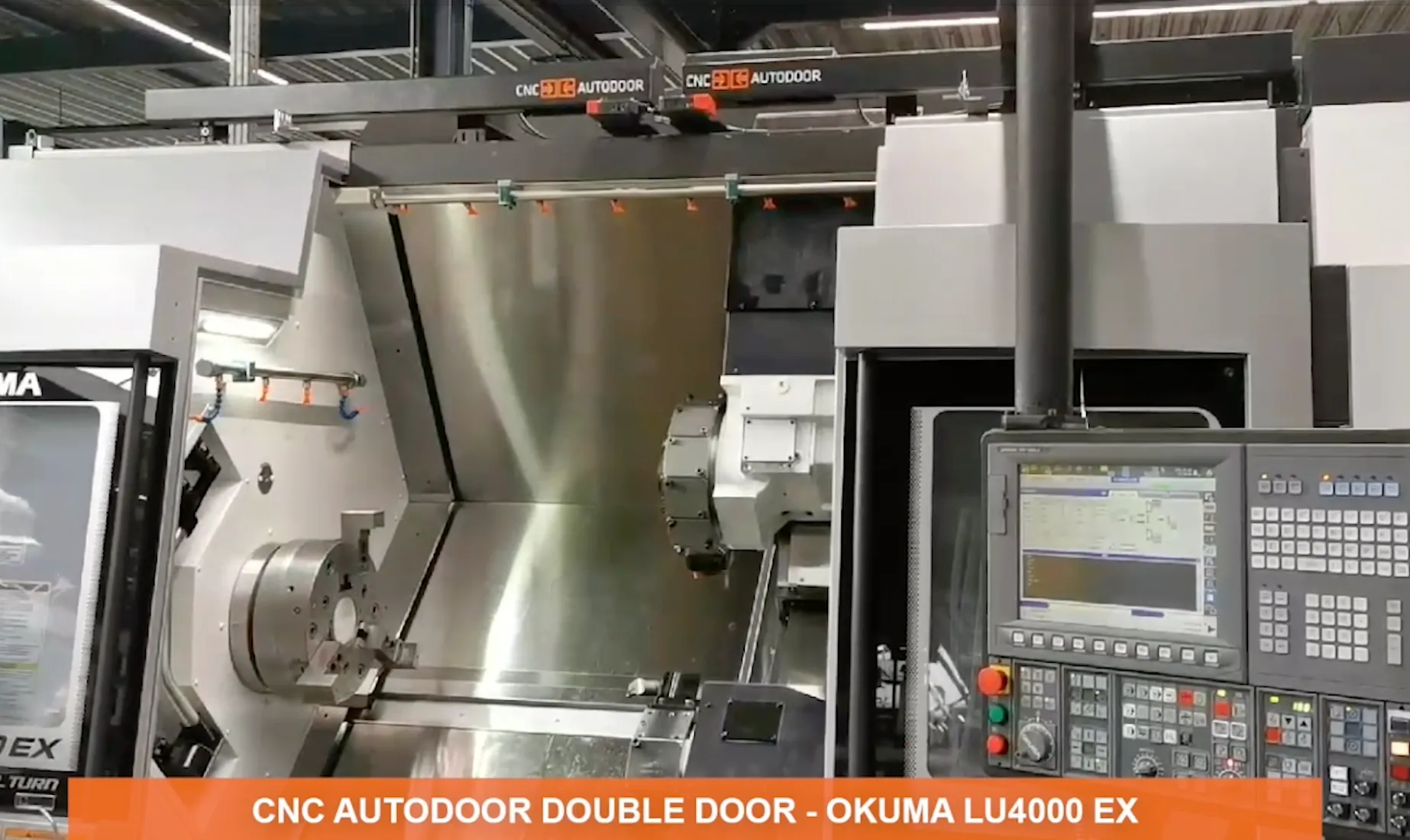

In the field
Request a quote
FAQ
Frequently Asked Questions
Still have questions?
Our support team is ready to help.
Can CNC AutoDoor also be installed on new CNC machines?
Yes.
CNC AutoDoor is suitable for both new CNC machines and existing machines.
Many machine builders, automation companies and end users integrate CNC AutoDoor into new machine installations as well as retrofit projects.
Is CNC AutoDoor easy to install?
Yes.
CNC AutoDoor has been designed for straightforward installation on a wide range of CNC machines.
Every system is supplied with universal mounting brackets, allowing installation on many different machine brands and models.
Why automate a CNC machine door?
Automatically opening and closing the machine door eliminates one of the most repetitive manual actions during CNC machining.
Whether the goal is robot loading, improved ergonomics or increased productivity, automatic door operation helps streamline the production process and allows operators to focus on more valuable tasks.
Do I need to know which CNC AutoDoor I need?
No.
You don’t need to compare models or technical specifications before contacting us.
We’ll evaluate your machine and recommend the CNC AutoDoor that best fits your application.
Which CNC machine brands are supported?
CNC AutoDoor is suitable for machines from all any of the world’s leading CNC machine manufacturers, including Mazak, Okuma, Haas, DN Solutions, DMG MORI, Makino, Brother, Hurco, Hyundai WIA, Hermle, Citizen, Star, Hardinge and many others.
If your brand isn’t listed on our website, simply send us the manufacturer and model. We’ll offer you the right application.
